NH-YJFG-0.6/1KV耐火环保电缆
|
 |
|
|
|
|
产品名称：NH-YJFG-0.6/1KV耐火环保电缆
产品编号：14347-318
产品型号：NH-YJFG-0.6/1KV
市场价格：面议 元/米
批发价格：面议 元/米
更新时间：2009.11.07

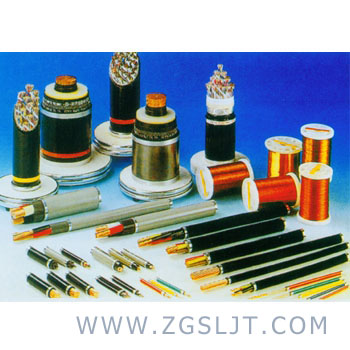

更多产品图片：
|
 |
|
 产品详细介绍 |
| 产品名称: 耐火环保电缆 产品特点: 0.6/1kv聚氯乙烯交联聚乙烯绝缘耐火电力电缆 PVC(XLPE)InsulatedFire-Resistant Power Cable 产品标准本产品按GB12706《额定电压35kV及以下铜芯、铝芯塑料绝缘电力电缆》和GB12666《电线电缆燃烧实验方法》标准生产，同时还可根据用户需要按******电工委员会推荐的IEC标准、英国BS标准、德国DIN 标准、美国ICEA标准及日本JIS标准生产。 The product is manufactured according to the standard of GB12706 and GB12666 or IEC,BS,DIN,ICEA,and JIS upon request. 适用范围本产品适用于工频额定电压0.6/1kV及以下配电线路或工业装置中有耐火要求的固定敷设场所使用。 The product is suitable for use in power distribution lines or fixed installations with rated power-frequency voltage up to and including 0.6/1kV. 使用特性 ·工频额定电压U0/U:0.6/1kV。 Rated power-frequency voltage U0/U:0.6/1kV. ·电缆导体的***高允许长期工作温度（PVC/XLPE）:70℃/90℃. www.zgsljt.comMax.permissible continuous operating temperature of conductor (PVC/XLPE): 70℃/90℃ ·短路时（***长持续时间不超过5s）电缆导体***高允许温度 PVC:导体截面≤300mm2-160℃ 导体截面＞300mm2-140℃ XLPE:250℃ Max.short-circuit temperature of the conductor shall not exceed(5s maxiumduration): PVC:cross-section of conductor≤300mm2-160℃ cross-section of conductor＞300mm2-140℃ XLPE:250℃ ·电缆敷设时环境温度应不低于0℃ The ambient temperature under installation should not below 0℃ ·电缆的弯曲半径：多芯电缆不小于电缆外径15倍，单芯电缆不小于电缆外径20倍。 The bending radius of a single-core cable should not less than 20 times of the cable diameter. The bending radius of multicore-cable should not less than 15 times of the cable diameter. 电缆的型号Type of cable |
|
|
|
|
|
