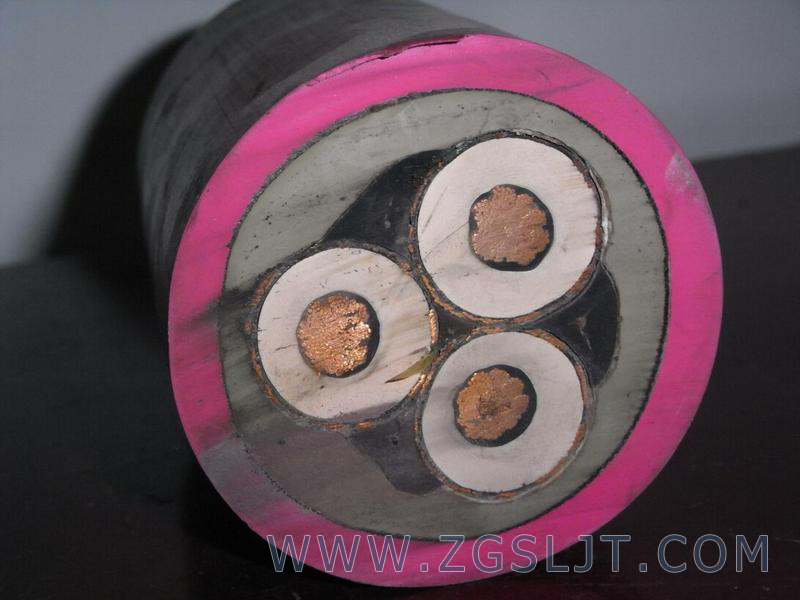

盾构机电缆（露天矿用耐寒高压橡套软电缆）
1 产品执行标准 Product standard
Q/VAJB35-2007 《盾构机高压橡套软电缆》
2 用途 Application
本产品适用于额定电压14/25kV及以下露天矿及地下掘进重型设备用乙丙橡皮绝缘氯丁橡皮护套高压橡套软电缆。
3 使用特性 Using features
3.1电缆导体***高额定温度为90℃。
3.2短路时（***长持续时间不超过5秒）电缆导体的***高温度不超过250℃。
3.3电缆允许***低环境温度:UGEFP型：—15℃；UGEFHP型：—33℃。
3.4电缆允许***小弯曲半径:用于固定设备时为6D；以自由活动方式连接时为10D；用电缆盘收放时为12D；
用转向导轮时为15D（其中D为电缆直径）。
4 型号及名称 Type and Designation
|
型号
Type |
额定电压（Uo/U）kV
Rated Voltage |
名称
Designation |
|
UGEFP |
3.6/6 6/6 6/10 8.7/10 8.7/15 12/20 14/25 |
露天矿用高压橡套软电缆（盾构机用电缆） |
|
UGEFHP |
3.6/6 6/6 6/10 8.7/10 8.7/15 12/20 14/25 |
露天矿用高压耐寒橡套软电缆（盾构机用耐寒电缆） |
5 结构尺寸及技术参数 Constructional dimension and technical parameter
表1 露天矿用高压（耐寒）橡套软电缆 3.6/6kV
|
芯数×标称截面
Cores×Nor.
Cross-sectional
area mm2 |
电缆近似外径
Approx. overall
diameter
mm |
20℃主线芯绝缘电阻
20℃ Phase Core Insulation Resistance
≥MΩ•km |
电缆近似重量
kg/km
Approx. weight
kg/km |
|
3×25+3×10 |
48.0-52.0 |
400 |
4245 |
|
3×35+3×10 |
51.0-56.0 |
360 |
4828 |
|
3×50+3×16 |
56.7-61.7 |
320 |
5670 |
|
3×70+3×16 |
61.2-66.2 |
280 |
7177 |
|
3×95+3×16 |
67.5-72.5 |
250 |
8337 |
|
3×120+3×25 |
70.7-75.7 |
230 |
9655 |
|
3×150+3×25 |
75.1-80.1 |
210 |
11661 |
|
3×185+3×35 |
81.2-86.2 |
190 |
13092 |
表2 露天矿用高压（耐寒）橡套软电缆 6/6KV 6/10kV
|
芯数×标称截面
Cores×Nor.
Cross-sectional
area mm2 |
电缆近似外径
Approx. overall
diameter
mm |
20℃主线芯绝缘电阻
20℃ Phase Core Insulation Resistance
≥MΩ•km |
电缆近似重量
kg/km
Approx. weight
kg/km |
|
3×10+1×10 |
48.9-52.9 |
550 |
3500 |
|
3×16+1×16 |
53.1-58.1 |
500 |
3834 |
|
3×25+3×10 |
49.7-54.7 |
450 |
4087 |
|
3×35+3×10 |
54.5-59.5 |
400 |
4979 |
|
3×50+3×16 |
58.4-63.4 |
350 |
5972 |
|
3×70+3×16 |
62.9-67.9 |
310 |
7134 |
|
3×95+3×16 |
69.2-74.2 |
280 |
8695 |
|
3×120+3×25 |
72.5-77.5 |
260 |
10096 |
|
3×150+3×25 |
78.6-83.6 |
230 |
11917 |
|
3×185+3×35 |
82.9-87.9 |
220 |
13721 |
表3 露天矿用高压（耐寒）橡套软电缆 8.7/10KV 8.7/15kV
|
芯数×标称截面
Cores×Nor.
Cross-sectional
area mm2 |
电缆近似外径
Approx. overall
diameter
mm |
20℃主线芯绝缘电阻
20℃ Phase Core Insulation Resistance
≥MΩ•km |
电缆近似重量
kg/km
Approx. weight
kg/km |
|
3×16+1×16 |
58.5-63.5 |
610 |
4648 |
|
3×25+3×10 |
56.2-61.2 |
550 |
5168 |
|
3×35+3×10 |
59.2-64.2 |
500 |
5861 |
|
3×50+3×16 |
63.1-68.1 |
440 |
7166 |
|
3×70+3×16 |
69.5-74.5 |
390 |
8771 |
|
3×95+3×16 |
74.0-79.0 |
350 |
10126 |
|
3×120+3×25 |
79.0-84.0 |
330 |
11827 |
|
3×150+3×25 |
83.3-88.3 |
300 |
13554 |
|
3×185+3×35 |
87.6-93.6 |
280 |
15489 |
表4 露天矿用高压（耐寒）橡套软电缆 12/20kV
|
芯数×标称截面
Cores×Nor.
Cross-sectional
area mm2 |
电缆近似外径
Approx. overall
diameter
mm |
20℃主线芯绝缘电阻
20℃ Phase Core Insulation Resistance
≥MΩ•km |
电缆近似重量
kg/km
Approx. weight
kg/km |
|
3×16+1×16 |
65.1-70.1 |
700 |
5475 |
|
3×25+3×10 |
60.5-65.5 |
630 |
5744 |
|
3×35+3×10 |
65.4-70.4 |
570 |
6774 |
|
3×50+3×16 |
69.2-74.2 |
510 |
7792 |
|
3×70+3×16 |
73.8-78.8 |
450 |
9156 |
|
3×95+3×16 |
80.1-85.1 |
410 |
10895 |
|
3×120+3×25 |
83.3-88.3 |
380 |
12383 |
|
3×150+3×25 |
87.6-93.6 |
350 |
13955 |
表5 露天矿用高压（耐寒）橡套软电缆 14/25kV www.zgsljt.com
|
芯数×标称截面
Cores×Nor.
Cross-sectional
area mm2 |
电缆近似外径
Approx. overall
diameter
mm |
20℃主线芯绝缘电阻
20℃ Phase Core Insulation Resistance
≥MΩ•km |
电缆近似重量
kg/km
Approx. weight
kg/km |
|
3×25+3×10 |
67.9-71.9 |
730 |
7006 |
|
3×35+3×10 |
71.0-75.0 |
660 |
7757 |
|
3×50+3×16 |
76.6-81.6 |
600 |
9327 |
|
3×70+3×16 |
81.2-86.2 |
530 |
10608 |
|
3×95+3×16 |
87.5-92.5 |
480 |
12470 |
|
3×120+3×25 |
90.7-95.5 |
450 |
14060 | |
