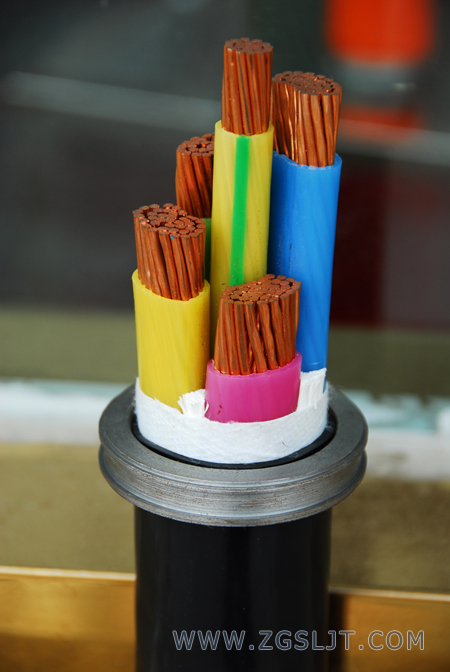

0.6•1kV交联聚乙烯绝缘电力电缆
|
 |
|
|
|
|
产品名称：0.6•1kV交联聚乙烯绝缘电力电缆
产品编号：124018-619
产品型号：VV VV22 YJV YJV22 VLV VLV22 YJLV22
市场价格：面议 元/米
批发价格：面议 元/米
更新时间：2009.10.16
更多产品图片：
|
 |
|
 产品详细介绍 |
| XLPE Insulated Power Cable |
|
产品标准 standard
本产品按GB12706《额定电压35KV铜芯、铝芯塑料绝缘电力电缆》标准生产，同时还可根据用户需要按******电工委员会推荐标准IEC、英国标准、德国标准及美国标准生产。The product is manufactured according to the standard of GB12706、IEC.BS,DIN and ICEA upon request.
适用范围 Applications
本产品适用于工频额定电压64/1KV及以下配电网或工业装置中固定敷设之用。
The product is suitable for use in power distribution lines or fixed installations with rated power- frequency voltage up to and including 0.6/1Kv.
使用特性 Operating characteridtles
·工频额定UO/U为0.6/1KV。
Rated power –frequency voltage UO/U为0.6/1KV。
电缆导体允许长期***高工作温度为90℃。
Max.permissible continuous operating temperature of conductor:90℃.
短路时（***长持续时间不超过5s）电缆导体的***高温度不超过250℃。
Max.short –circuit temperature of conductor shall not exceed 250℃(5s maximum duration ).
电缆敷设时环境温度应不低于0℃。
The ambient temperature under installation should not below 0℃.
电缆弯曲半径：不小于电缆外径的15倍。
The bending radius should not less than 15 times of cable diameter.
电缆的型号 Type of cablewww.zgsljt.com
| 型号 Type |
名称 Designation |
适用范围 Application |
| YJV |
铜芯交联聚乙烯绝缘聚氯乙烯外护套电力电缆 Copper conductor ,XLPE insulated ,PVC sheathed power cable |
室内、隧道、电缆沟内或直脉地下，能够承受一定的机械外力和一定的拉力。 For laying indoor , in tunnel, cable French, well or direct in ground , able to bear external mechanical forces and certain pulling force. |
| YJLV |
铝芯交联聚乙烯绝缘聚氯乙烯护套电力电缆 Aluminum conductor ,XLPE insulated ,PVC sheathed power cable |
| YJY |
铜芯交联聚乙烯绝缘聚乙烯外护套电力电缆 Copper conductor ,XLPE insulated ,PE sheathed power cable |
| YJLY |
铝芯交联聚乙烯绝缘聚乙烯护套电力电缆 Aluminum conductor ,XLPE insulated ,PE sheathed power cable | |
|
电缆的型号
| 型号 Type |
名称 Designation |
适用范围 Application |
| YJLW02-Z |
铜芯交联聚乙烯绝缘皱纹铝套聚氯乙烯外护套纵向阻水电力电缆 Copper conductor , XLPE insulated ,creasing-aluminum sheathed and PVC sheathed longitudinal-block-water power cable |
室内、隧道、电缆沟内或直埋地下，可在潮湿环境及地下水位较高的地方使用，能够承受一定的机械外力和一定的拉力 For laying indoors ,in tunnel, cable French, well or direct in ground , use in the damp place and in the high water table ,able to bear external mechanical forces and certain pulling force. |
| YJLLW02-Z |
铝芯交联聚乙烯绝缘皱纹铝套聚氯乙烯外护套纵向阻水电力电缆 Aluminum conductor , XLPE insulated ,creasing-aluminum sheathed and PVC sheathed longitudinal-block-water power cable |
| YJLW03-Z |
铜芯交联聚乙烯绝缘皱纹铝套聚乙烯外护套纵向阻水电力电缆 Copper conductor , XLPE insulated ,creasing-aluminum sheathed and PE sheathed longitudinal-block-water power cable |
| JLLW03-Z |
铝芯交联聚乙烯绝缘皱纹铝套聚乙烯外护套纵向阻水电力电缆 Aluminum conductor , XLPE insulated ,creasing-aluminum sheathed and PE sheathed longitudinal-block-water power cable |
| YJV |
铜芯交联聚乙烯绝缘聚氯乙烯外护套电力电缆 Copper conductor, XPLE insulated and PVC sheathed power cable |
室内、隧道及电缆沟内等场所，不能承受机械外力。 For laying indoors, In tunnel , cable trench,well or direct in ground,able to bear external mech- anical forces and certain pulling force. |
| YJLV |
铝芯交联聚乙烯绝缘聚氯乙烯外护套电力电缆 Aluminum conductor, XPLE insulated and PVC sheathed power cable |
| YJY |
铜芯交联聚乙烯绝缘聚乙烯外护套电力电缆 Copper conductor, XPLE insulated and PE sheathed power cable |
| YJLY |
铝芯交联聚乙烯绝缘聚乙烯外护套电力电缆 Aluminum conductor, XPLE insulated and PE sheathed power cable | |
|
生产范围Production Range of Cable
| 型号 Type |
芯数
No.of cores |
导体标称截面
Nominal cross-section of conductor mm2 |
| 铜导体 Copper conductor |
铝导体 Aluminum conductor |
1* |
|
YJV YJY
YJV22 YJV23 |
YJLV YJLY
YJLV22 YJLV23 |
2 |
1.5~800
2.5~800
10~800 |
YJV YJY
YJV22 YJV23
YJV32 YJV33 |
YJLV YJLY
YJLV22 YJLV23
YJLV32 YJLV33 |
3 |
1.5~300
2.5~300
2.5~300
10~300 |
YJV YJY
YJV22 YJV23
YJV32 YJV33
|
YJLV YJLY
YJLV22 YJLV23
YJLV32 YJLV33 |
4 |
1.5~400
2.5~400
2.5~400
10~400 |
YJV YJY
YJV22 YJV23
YJV32 YJV33
|
YJLV YJLY
YJLV22 YJLV23
YJLV32 YJLV33 |
3＋1 |
1.5~400
2.5~400
2.5~400
10~400 |
YJV YJY
YJV22 YJV23
YJV32 YJV33
|
YJLV YJLY
YJLV22 YJLV23
YJLV32 YJLV33 |
5 |
1.5~400
4.0~400
1.5~400
4.0~400
10~400 |
YJV YJY
YJV22 YJV23
YJV32 YJV33
|
YJLV YJLY
YJLV22 YJLV23
YJLV32 YJLV33 |
4＋1 |
1.5~400
2.5~400
1.5~400
2.5~400
10~400 |
YJV YJY
YJV22 YJV23
YJV32 YJV33
|
YJLV YJLY
YJLV22 YJLV23
YJLV32 YJLV33 |
3＋2 |
1.5~400
4.0~400
1.5~400
4.0~400
10~400 |
YJV YJY
YJV22 YJV23
YJV32 YJV33
|
YJLV YJLY
YJLV22 YJLV23
YJLV32 YJLV33 |
|
1.5~400
4.0~400
1.5~400
4.0~400
10~400 | |
|
*单芯铠装电缆仅用于直流系统，若用于交流系统，应采用非磁性材料铠装或隔磁措施。
*The armoured single-core cables are used for d.c. system only.As for a.c. system,non-magnetic armour material should be used,or a magnetic isolation shouls beapplied.
结构尺寸及主要技术参数Construction and main technical data
0.6/1KV单芯交联聚乙烯绝缘聚氯乙烯护套电力电缆（YJV,YJLV）
0.6/1KV,Single-core,XLPE Insulated,PVC Shezthed Power Cable
导体标称截面 Nom.cross-section
of conductor
|
导体直径
Diammeter
ofconductor
|
绝缘厚度
Insulation
Thickness
|
护套厚度
Sheath
thickness
|
电缆近似外径 Approx.
overalld
iameter of cable
|
电缆近似重量
Approx.weighe of cable
Kg/km
|
导体***大直流电阻 Max.d.cresis
tance(20 ℃ )Ω /km
|
试验电压
Test
Voltage(a.c)
|
| mm2 |
mm |
mm |
mm |
mm |
YJV |
YJLV |
YJV |
YJLV |
KV/5min |
1 × 1.5
1 × 2.5
1 × 4 |
1.4
1..8
2.2 |
0.7
0.7
0.7 |
1.4
1.4
1.4 |
5.6
6.0
6.4 |
52.4
65.4
83.1 |
50
58.8 |
12.1
7.41
4.61 |
12.1
7.41
4.61 |
3.5
|
1 × 6
1 × 10
1 × 16 |
2.8
4.1
5.1 |
0.7
0.7
0.7 |
1.4
1.4
1.4 |
7.0
8.3
9.3 |
106.7
157.7
221.6 |
69.7
94.5
121.5 |
3.08
1.83
1.15 |
3.08
1.83
1.15 |
1 × 25
1 × 35
1 × 50 |
6.4
7.6
8.9 |
0.9
0.9
1.0 |
1.5
1.5
1.6 |
11.2
12.4
14.1 |
334.7
435.8
576.7 |
175.9
215.6
278.6 |
0.73
0.52
0.39 |
0.73
0.52
0.39 |
1 × 50*
1 × 70
1 × 70* |
8.3
10.7 |
1.0
1.1 |
1.6
1.6
1.6 |
13.5
16.1 |
557.8
793.6
752.3 |
267.5
362.7
342.1 |
0.39
0.27
0.27 |
0.39
0.27
0.27 |
1 × 95
1 × 95*
1 × 120 |
12.6
11.5
14.2 |
1.1
1.1
1.2 |
1.7
1.7
1.7 |
18.2
17.1
20.0 |
1066
1028
1321 |
468.8
447.1
565.7 |
0.19
0.19
0.15 |
0.19
0.19
0.15 |
1 × 120*
1 × 150
1 × 150* |
12.9
15.8
14.5 |
1.2
1.4
1.4 |
1.7
1.7
1.7 |
18.7
22.0
20.7 |
1275
1606
1584 |
539.1
677.8
658.3 |
0.15
0.12
0.12 |
0.15
0.12
0.12 |
1 × 185
1 × 185*
1 × 240
|
17.6
16.0
20.3
|
1.6
1.6
1.7
|
1.7
1.7
1.7
|
24.2
22.6
27.1
|
1977
1868
2548
|
813.3
763.5
1018
|
0.10
0.10
0.08
|
0.10
0.10
0.08
|
1 × 240*
1 × 300
1 × 300*
|
18.3
22.7
20.5
|
1.7
1.8
1.8
|
1.7
1.7
1.7
|
25.1
29.7
27.5
|
2399
3151
3028
|
952.7
1232
1172
|
0.08
0.06
0.06
|
0.08
0.06
0.06
|
1 × 400
1 × 400*
1 × 500
|
25.7
23.5
28.8
|
2.0
2.0
2.2
|
1.7
1.7
1.8
|
33.1
30.9
36.8
|
3985
3888
4996
|
1531
1478
1902
|
0.05
0.05
0.04
|
0.05
0.05
0.04
|
1 × 500*
1 × 630
1 × 630*
1 × 800
|
26.5
32.5
29.5
36.5
|
2.2
2.4
2.4
2.6
|
1.8
1.9
1.9
2.0
|
34.5
41.1
38.5
45.7
|
4953
6294
6164
7920
|
1861
2372
2299
2592
|
0.04
0.03
0.03
0.02
|
0.06
0.05
0.05
0.04
|
*表示导体为紧压圆形胶合导体。
*－Compacted stranded circular conductor. |
 |
|
0.6/1KV单芯交联聚乙烯绝缘钢带铠装聚氯乙烯护套电力电缆（YJV22,YJLV22）
0.6/1KV,Single-core,XLPE Insulated，Steel Tape Armoured,PVC Shezthed Power Cable
导体标称截面 Nom.cross-section
of conductor
|
导体直径
Diammeter
ofconductor
|
绝缘厚度
Insulation
Thickness
|
护套厚度
Sheath
thickness
|
电缆
近似外径 Approx.
overalldia
meterof
cable
|
电缆近似重量
Approx.weighe of cable
Kg/km
|
导体***大直流电阻 Max.d.cresistance
(20 ℃ ) Ω /km
|
试验电压
Test
Voltage(a.c)
|
mm2
|
mm
|
mm
|
mm
|
mm
|
YJV
|
YJLV
|
YJV
|
YJLV
|
KV/5min
|
1 × 10
1 × 16
1 × 25
|
4.1
5.1
6.4
|
1.0
1.0
1.2
|
1.8
1.8
1.8
|
11.7
12.7
14.4
|
233.3
305.8
426.4
|
170.1
205.8
267.7
|
1.83
1.15
0.73
|
30.8
1.91
1.20
|
0.35
|
1 × 35
1 × 50
1 × 50*
|
7.6
8.9
8.3
|
1.2
1.2
1.4
|
1.8
1.8
1.8
|
15.6
17.1
16.5
|
536.2
680.8
657.6
|
316.1
382.6
367.3
|
0.52
0.39
0.39
|
0.87
0.67
0.67
|
1 × 70
1 × 70*
1 × 95
|
10.7
9.8
12.6
|
1.4
1.4
1.6
|
1.8
1.8
1.8
|
19.1
18.2
21.0
|
912
864.3
1188
|
481
454.1
590.2
|
0.27
0.27
0.19
|
0.44
0.44
0.32
|
1 × 95*
1 × 120
1 × 120*
|
11.5
14.2
12.9
|
1.6
1.6
1.6
|
1.8
1.8
1.8
|
19.9
22.8
21.5
|
1143
1454
1400
|
561.3
698.8
663.7
|
0.19
0.15
0.15
|
0.32
0.25
0.25
|
1 × 150
1 × 150*
1 × 185
|
15.8
14.5
17.6
|
1.8
1.8
2.0
|
1.8
1.8
1.8
|
24.8
23.5
27.0
|
1751
1721
2140
|
823.5
795.9
976.2
|
0.12
0.12
0.01
|
0.21
0.21
0.16
|
1 × 185*
1 × 240
1 × 240*
|
16.0
20.3
18.3
|
2.0
2.2
2.2
|
1.8
1.8
1.8
|
25.4
29.9
27.9
|
2020
2729
2567
|
915.6
1200
1121
|
0.01
0.08
0.08
|
0.16
0.13
0.13
|
1 × 300
1 × 300*
1 × 400
|
22.7
20.5
25.7
|
2.4
2.4
2.6
|
1.9
1.9
2.0
|
32.7
30.5
38.1
|
3363
3225
4596
|
1445
1369
2142
|
00.6
0.06
0.05
|
0.10
0.10
0.08
|
1 × 400*
1 × 500
1 × 500*
|
23.5
28.8
26.5
|
2.6
2.8
2.8
|
2.0
2.1
2.1
|
35.9
41.8
39.5
|
4461
5667
5584
|
2050
2574
2492
|
0.05
0.04
0.04
|
0.08
0.06
0.06
|
1 × 630
1 × 630*
1 × 800
|
32.5
29.9
36.6
|
2.8
2.8
2.8
|
2.3
2.3
2.4
|
46.3
43.7
50.9
|
7084
6878
8757
|
3132
3031
3789
|
0.03
0.03
0.02
|
0.05
0.05
0.04
|
*表示导体为紧压圆形胶合导体。
*－Compacted stranded circular conductor. |
 |
|
0.6/1KV两芯交联聚乙烯绝缘聚氯乙烯护套电力电缆（YJV,YJLV）
0.6/1KV,2-core,XLPE Insulated,PVC Shezthed Power Cable
导体标称截面 Nom.cross-section of
conductor
|
导体直径
Diammeter
ofconductor
|
绝缘厚度
Insulation
Thickness
|
护套厚度
Sheath
thickness
|
电缆近似外径 Approx.overall
diameterof
cable
|
电缆近似重量
Approx.weighe of cable
Kg/km
|
导体***大直流电阻 Max.d.cresistance
(20 ℃ )Ω /km
|
试验电压
Test
Voltage(a.c)
|
mm2
|
mm
|
mm
|
mm
|
mm
|
YJV
|
YJLV
|
YJV
|
YJLV
|
KV/5min
|
2 × 1.5
2 × 2.5
2 × 4
|
1.4
1.8
2.2
|
0.7
0.7
0.7
|
1.8
1.8
1.8
|
10.0
10.8
11.7
|
99.6
127.2
164.7
|
-
95.8
115
|
12.1
7.41
4.61
|
-
12.1
7.41
|
3.5
|
2 × 6
2 × 10
2 × 16
|
2.8
4.1
5.1
|
0.7
0.7
0.7
|
1.8
1.8
1.8
|
12.7
15.3
17.4
|
214.6
324.2
460.9
|
139.2
195.9
257.5
|
3.08
1.83
1.15
|
4.61
3.08
1.91
|
2 × 25
2 × 35
2 × 50**
|
6.4
7.6
5.6
|
0.9
0.9
1.0
|
1.8
1.8
1.8
|
20.8
23.1
19.6
|
691.7
907.4
1039
|
369.4
460.5
478.3
|
0.73
0.52
0.39
|
1.20
0.87
0.64
|
2 × 50
2 × 50*
2 × 70**
|
8.9
8.3
6.7
|
1.0
1.0
1.1
|
1.8
1.8
1.8
|
26.2
25.0
22.6
|
1194
1149
1456
|
588.6
559.8
646.6
|
0.39
0.39
0.27
|
0.64
0.64
0.44
|
2 × 70
2 × 70*
2 × 95**
|
10.7
9.8
8.1
|
1.1
1.1
1.1
|
1.8
1.8
2.0
|
30.6
28.8
25.8
|
1672
1576
1973
|
797.4
743.2
849.3
|
0.27
0.27
0.19
|
0.44
0.44
0.32
|
2 × 95
2 × 95*
2 × 120**
|
12.6
11.5
9
|
1.1
1.1
1.2
|
2.0
2.0
2.1
|
34.8
32.6
28.2
|
2265
2171
2459
|
1052
989.3
1042
|
0.19
0.19
0.15
|
0.32
0.32
0.25
|
2 × 120
2 × 120*
2 × 150**
|
14.2
12.9
11.7
|
1.2
1.2
1.4
|
2.1
2.1
2.2
|
38.6
36.0
34.6
|
2832
2713
3058
|
1299
1219
1309
|
0.15
0.15
0.12
|
0.25
0.25
0.21
|
2 × 150
2 × 150*
2 × 185**
|
15.8
14.5
12
|
1.4
1.4
1.6
|
2.2
2.2
2.3
|
42.7
40.2
36.2
|
3472
3398
3768
|
1589
1520
1579
|
0.12
0.12
0.10
|
0.21
0.21
0.16
|
2 × 185
2 × 185*
2 × 240
|
17.6
16.0
20.3
|
1.6
1.6
1.7
|
2.3
2.3
2.5
|
47.5
44.2
53.5
|
4307
4042
5637
|
1945
1800
2532
|
0.10
0.10
0.08
|
0.16
0.16
0.13
|
2 × 240*
2 × 300
2 × 300*
|
18.3
22.7
20.5
|
1.7
1.8
1.8
|
2.5
2.7
2.7
|
49.6
59.2
54.8
|
5264
6932
7345
|
2329
3037
3076
|
0.08
0.08
0.06
|
0.13
0.10
0.10
|
*表示导体为紧压圆形胶合导体。 **表示导体为紧压扇形胶合导体。
*－Compacted stranded circular conductor. **－Compact sector shaped conductor. |
 |
| 0.6/1KV两芯交联聚乙烯绝缘钢带铠装聚氯乙烯护套电力电缆（YJV22,YJLV22） | |
|
|
|
|
|
