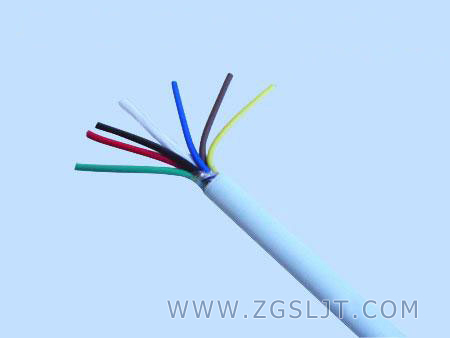

RVV、RVVB型 铜芯聚氯乙烯绝缘聚氯乙烯护套圆型、平安安装用软电线
一、适用范围
产品用于交流额定电压300/300V和300/500V及以下的电器设备、照明、自动化装置等在干燥及潮湿场所可移动的连接。
电线的线芯长期允许工作温度不超过+70℃，电线的安装温度应不低于-15℃www.zgsljt.com
二、产品标准：JBB734-98
三、技术参数
|
芯数×标准截面mm2 |
规格 |
绝缘厚度规定值mm |
护套厚度规定值mm |
20℃时导体电阻Ω/km不大于 |
|
铜芯 |
镀芯铜芯 |
|
2×0.5 |
16/0.20 |
0.5 |
0.6 |
39.0 |
40.1 |
|
2X0.75 |
24/0.20 |
0.6 |
0.8 |
26.0 |
26.7 |
|
2X1 |
32/0.20 |
0.6 |
0.8 |
19.5 |
20.0 |
|
2X1.5 |
30/0.25 |
0.7 |
0.8 |
13.3 |
13.7 |
|
2X2.5 |
49/0.25 |
0.8 |
1.0 |
7.98 |
8.21 |
|
3×0.5 |
16/0.20 |
0.6 |
0.6 |
39.0 |
40.1 |
|
3X0.75 |
24/0.20 |
0.6 |
0.8 |
26.0 |
26.7 |
|
3X1 |
32/0.20 |
0.6 |
0.8 |
19.5 |
20.0 |
|
3X1.5 |
30/0.25 |
0.7 |
0.9 |
13.3 |
13.7 |
|
3X2.5 |
49/0.25 |
0.8 |
1.1 |
7.98 |
8.21 |
|
4X0.75 |
24/0.20 |
0.6 |
0.8 |
26.0 |
26.7 |
|
4X1 |
32/0.20 |
0.6 |
0.9 |
19.5 |
20.0 |
|
4X1.5 |
30/0.25 |
0.7 |
1.0 |
13.3 |
13.7 |
|
4X2.5 |
49/0.25 |
0.8 |
1.1 |
7.98 |
8.21 |
|
5X0.75 |
24/0.20 |
0.6 |
0.9 |
26.0 |
26.7 |
|
5X1 |
32/0.20 |
0.6 |
0.9 |
19.5 |
20.0 |
|
5X1.5 |
30/0.25 |
0.7 |
1.1 |
13.3 |
13.7 |
|
5X2.5 |
49/0.25 |
0.8 |
1.2 |
7.98 |
8.21 |
备注；图片与实物描述可能有差异，具体要一实物为准！ |
